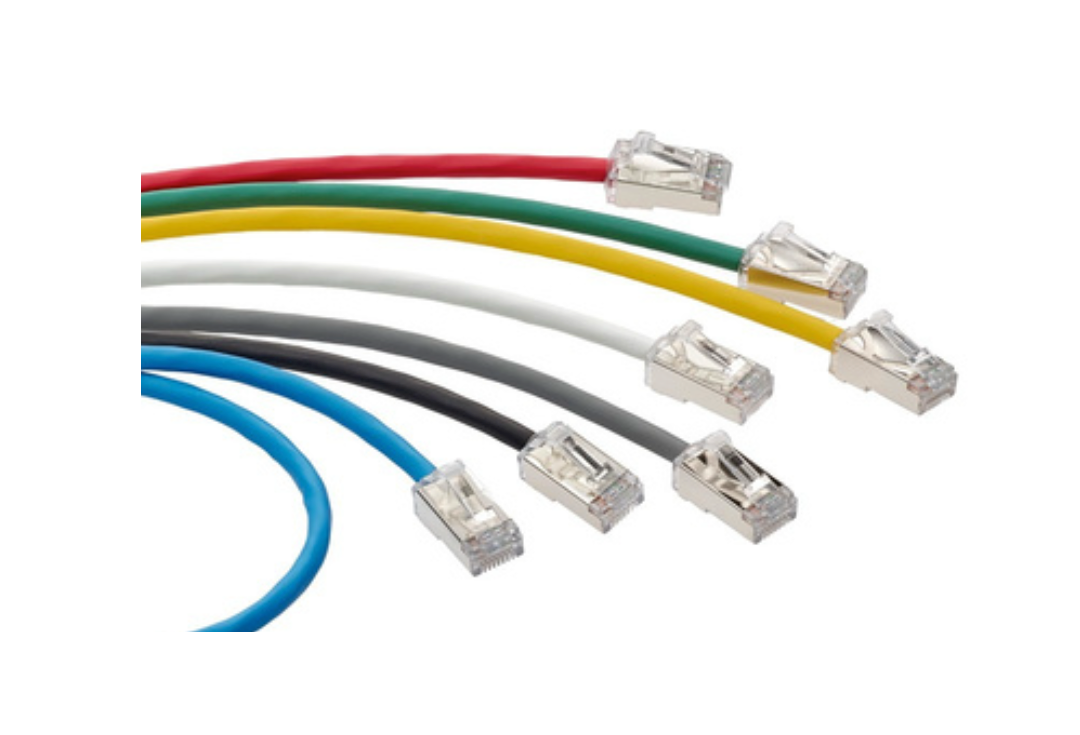

Leviton – Cat 6A Small Diameter High-Flex Patch Cords

Small-diameter Cat6A high-flex patch cords with compact plug and boot for 10-Gigabit applications, 0.185″ (4.7 mm) OD, available in lengths 1–50 ft and multiple colors.

Categories: Leviton, Products Tags: 0.185in, 10-Gigabit, 28 AWG, 4.7mm, bulk pack, Cat6A, CM, compact plug, GREENPACK, high-flex, Leviton Secure RJ, LSZH, shielded, short bend radius, small diameter, snagless, UTP

Cat6A Small Diameter High-Flex Patch Cords provide flexible, high-density patching for 10-Gigabit applications across 1 to 500 MHz. Cords feature a compact plug and boot that enable a shorter installed bend radius for limited-depth applications, a snagless design, integrated strain relief, and compatibility with UTP or shielded installations and the Leviton Secure RJ system. Available in multiple colors and lengths and offered in GREENPACK bulk packaging options.

Mechanical and Electrical Specifications

Conductor: 28 AWG stranded U/FTP.
Plug: Standard 8-position modular plug with minimum 50 microinches gold plating on contacts.
Cable OD: 0.185 inches (4.7 mm).
Bend radius: 0.74 inches (18.8 mm).
Temperature: Storage -20 °C to +70 °C; Installation 0 °C to +50 °C; Operating -20 °C to +60 °C.
Humidity: 93% relative humidity, non-condensing.
UL voltage rating: 300 V.

Standards and Regulatory Compliance

Meets or exceeds: ANSI/TIA-568.2 Cat 6A, ISO/IEC 11801-1 Class EA, EN 50173-1 Class EA.
Also conforms to: IEC 61156-6, ANSI/TIA-1096-A, UL 444 CM Rated, IEC 60332-1-2, 60754-2, 61034, IEC 60603-7, IEC 60603-7-1.
Power delivery: Supports IEEE 802.3 PoE Types 1–4 up to 100 watts and Cisco UPOE/UPOE+; supports Power over HDBaseT PoH.
Listings: c(UL)us Listed (UL 1863).
RoHS compliant.

Ordering and Packaging Notes

Region SKUs: Separate part number tables provided for Europe/Middle East/APAC and North America/Latin America.
GREENPACK options: Bulk pack SKUs available in 12- or 24-count packs to reduce jobsite waste.
Rating note: Lengths 3–20 feet are component rated; all other lengths are channel rated.
Color clips compatibility: Compatible with Patch Cord Color Clips PCCLP-B*M in bags of 24.

Warranty Information

Warranty: For Leviton product warranties, visit .

SKUs

H6A10-01W, H6A10-01Y, H6A10-01R, H6A10-01L, H6A10-01G, H6A10-01S
H6A10-02W, H6A10-02Y, H6A10-02R, H6A10-02L, H6A10-02G, H6A10-02S
H6A10-03W … H6A10-20E (full North America / Latin America table set)
H6AP0-01W, H6AP0-01Y, H6AP0-01R, H6AP0-01L, H6AP0-01G, H6AP0-01S (pack of 24)
H6AP0-02W … H6AP0-20W (additional GREENPACK and region-specific pack SKUs as listed in product table)

Product Specification

Features and Benefits

Available lengths: 1 to 50 feet supports a wide range of installations.
Small outer diameter: 0.185 inches reduces patch cord density by approximately 25% in a 24-port patch panel.
Compact plug and boot: Promotes a shorter installed bend radius ideal for limited depth applications.
Narrow bend radius: 0.74 inches installed bend radius versus 1.0 inch for typical Cat6A cords.
Dual-rated jacket: CM/LSZH for broader compliance and safety.
Snagless design: Prevents tab breakage for reliable use.
Integrated strain relief: Improves longevity under repeated movement.
Universal use: Same cord suitable for UTP or shielded installations.
Compatibility: Works with Leviton Secure RJ system and accepts clip-on colored boot markers for network ID.
Sustainable packaging: GREENPACK bulk pack eliminates single-use plastics, supplied in 12- or 24-unit packs, and is 100% recyclable brown cardboard.
Compliance: Living Building Challenge Red List Free.
