Leviton Premium Plus Fiber Patch Cords

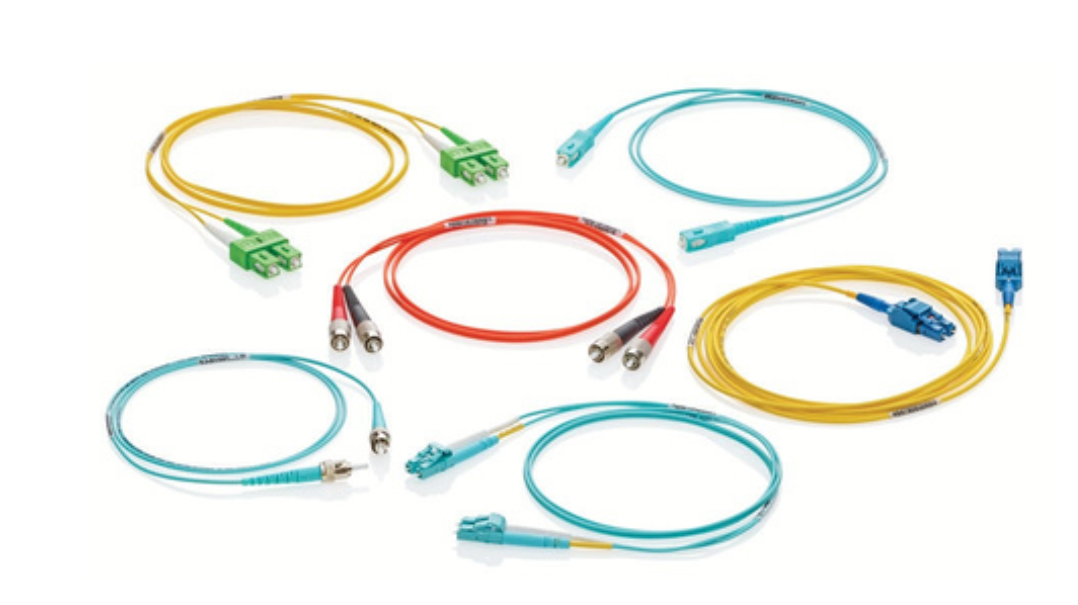

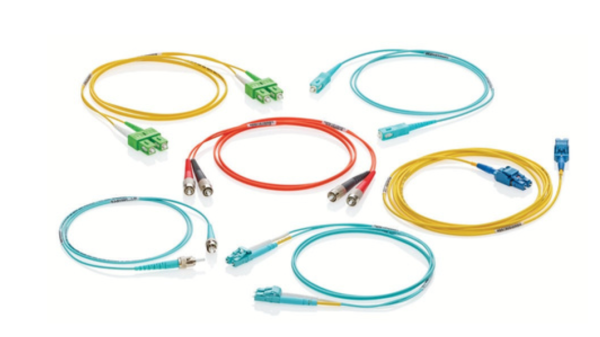

Premium Plus fiber patch cords are precision‑terminated, factory‑tested interconnect and cross‑connect cords for structured cabling in data centers, PON, FTTH, WDM/DWDM, CATV and enterprise networks. Available in simplex, duplex and pigtail formats with LC (including unibody), LC/APC, SC, SC/APC, ST, FC and FC/APC terminations; offered in OS2, OM1, OM3, OM4 and OM5 fiber types, multiple jacket ratings (Plenum, LSZH), and lengths from 1 m to custom lengths. Patch cords are individually packaged with barcode and QR documentation, include wrap labels with length, polarity and serial traceability, and carry Leviton Premium Plus warranty when installed by a certified contractor.

Product Specification

• Connector options: LC, LC Unibody (Spectro‑Link), LC/APC, SC, SC/APC, ST, FC, FC/APC.
• Fiber types: OS2 (SM), OM1, OM3, OM4, OM5 (WBMMF available with LC duplex, 1.6 mm zipcord).
• Cable assemblies: Simplex 2.0 mm; Duplex 2.0 mm round; Duplex 1.6 mm zipcord.
• Jacket ratings: Plenum (UL NFPA 262), LSZH (IEC 60332‑3‑24 / IEC 60332‑1‑2), PVC (where applicable).
• Insertion loss: Multimode typical 0.15 dB, max 0.25 dB; Single‑mode typical 0.12 dB, max 0.25 dB.
• Return loss: Multimode ≥ 26 dB; Single‑mode UPC ≥ 50 dB; Single‑mode APC ≥ 60 dB.
• Mechanical: Connector durability > 500 matings; cable retention ≥ 50 N per IEC 61300‑2‑4.
• Lengths: Standard 1, 2, 3 m; custom lengths available (tolerances and increments per datasheet).
• Polarity: A‑B standard; LC unibody supports field polarity reversal via Spectro‑Link without moving fibers.
• Packaging & traceability: Individually boxed, Code 39 barcode, QR code to documentation, wrap labels with length/end/polarity/serial.
• Compliance: ANSI/TIA‑568.3‑D; ISO/IEC 11801‑1; ANSI/TIA‑598‑D; RoHS.

SKU / Product Codes

• PCF‑S2‑P‑LC‑LC‑0010 — OS2, Plenum, LC to LC duplex, 1.0 m (example format)
• PCF‑M4‑R‑LC‑LC‑0030 — OM4, Zipcord, LC duplex, 3.0 m (example format)
• PCF‑M3‑L‑LCU‑LCU‑0020 — OM3, LSZH, LC unibody duplex, 2.0 m (example format)
• PCF‑OM1‑2‑SC‑SC‑0015 — OM1, duplex, SC to SC, 1.5 m (example format) Note: Actual Leviton part codes are generated by the configurator at Leviton.com/configurator; above are representative SKU patterns to use for catalog entries.
