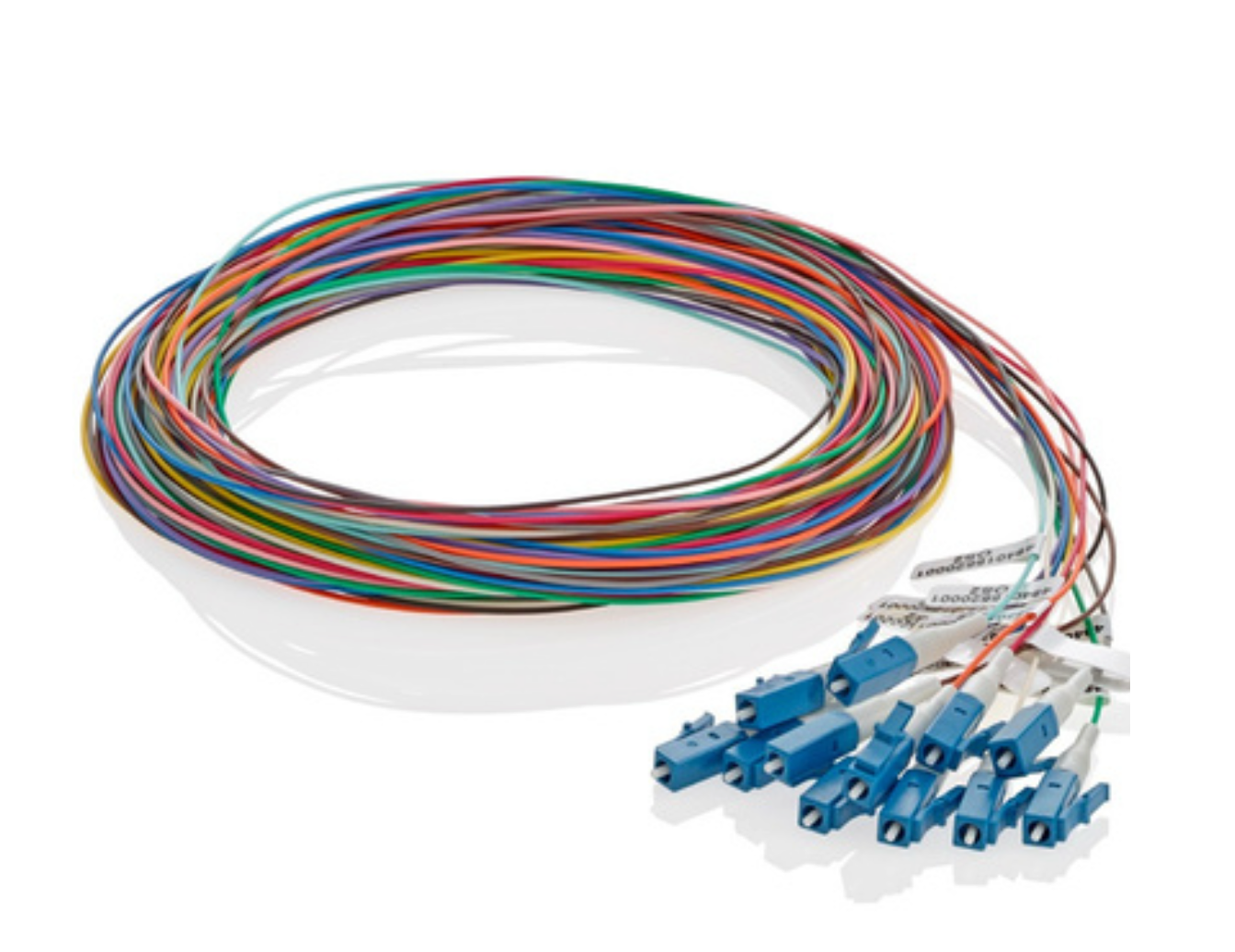

Leviton Premium Plus Fiber Pigtails and Pigtail Kits

Premium Plus fiber pigtails and pigtail kits for fusion splicing; factory‑tested low‑loss single‑mode and multimode connectors, TIA color‑coded packs, and quick‑turn make‑to‑order options.

Premium Plus fiber optic pigtails and pigtail kits are manufactured in the USA for fusion splicing in data centers, PON, WDM/DWDM, FTTh and access networks. Pigtails are 900‑µm tight buffer cords available in 1, 2, or 3 m lengths (longer lengths on request), offered with LC, LC/APC, SC, SC/APC, ST, FC and FC/APC terminations and in OS2, OM1, OM3, OM4 and OM5 fiber types. Connectors are precision polished with zirconia ferrules, 100% tested for insertion loss and return loss, and individually packaged with part number, barcode and QR code; pigtails feature flag labels for traceability. Standard insertion loss ≤ 0.25 dB (standard) and ≤ 0.12 dB (low‑loss) for single‑mode; multimode ≤ 0.25 dB (standard) and ≤ 0.15 dB (low‑loss). Single‑mode return loss: UPC ≥ 50 dB, APC ≥ 60 dB. Multimode return loss ≥ 26 dB. Pull force 5 N ± 0.5 and connector durability > 500 matings.

Product Specification

Product Specification (Feature and Benefit)

Features

Available terminations: LC, LC/APC, SC, SC/APC, ST, FC, FC/APC.
Kit sizes: 6, 8, 12, 16; singles available.
Fiber options: OS2, OM1, OM3, OM4, OM5; bend‑insensitive glass for SM and OM classes.
Lengths: 1 m, 2 m, 3 m (longer lengths available on request).
Tight buffer construction: 900‑micron tight buffer.
Optical performance: insertion loss ≤ 0.25 dB (standard), ≤ 0.12 dB (low loss); return loss ≥ 50 dB UPC / ≥ 60 dB APC (single‑mode); multimode return loss ≥ 26 dB.
Mechanical: pull force 5 N ± 0.5 per IEC 61300‑2‑44; connector durability > 500 matings.
Packaging and traceability: individually packaged with part number, description, Code39 barcode, QR link to docs; flag labels with fiber type and serial number; factory test data.
Quick‑turn manufacturing: small orders (up to defined quantities) available for fast shipment; custom configurations via Leviton configurator.
Warranty: Limited Lifetime Warranty when installed by a Leviton certified contractor with Leviton cabling.

Benefits

Flexible termination and fiber-type options meet diverse network designs across data center, PON, FTTh, WDM/DWDM and CATV use cases.
Low insertion and high return loss ensure reliable, low‑loss fusion spliced connections for high‑speed links.
Pretested, labeled, and barcoded parts simplify inventory, traceability, QA and field commissioning.
Tight buffer construction and durable connectors reduce handling damage and speed splicing operations.
Kit color sequencing to TIA simplifies identification and organized deployment.
Quick‑turn and configurator options shorten lead times for urgent or bespoke builds.
Factory test data and warranty reduce installation risk and support long‑term performance.
