Leviton QuickPort Fiber Optic Adapters (ST, SC, LC, MTP)

QuickPort snap‑in fiber adapters (ST/SC/LC/MTP), zirconia or phosphor bronze sleeves, shuttered LC IP5x with VFL illumination, fits all QuickPort housings.

SKU: 41086‑ML Categories: Leviton, Products Tags: 41084, 41085, 41086, fiber adapter, IP5x, LC shuttered, Leviton, MTP adapter, phosphor bronze sleeve, QuickPort adapter, SC adapter, ST adapter, zirconia sleeve Brand: Leviton

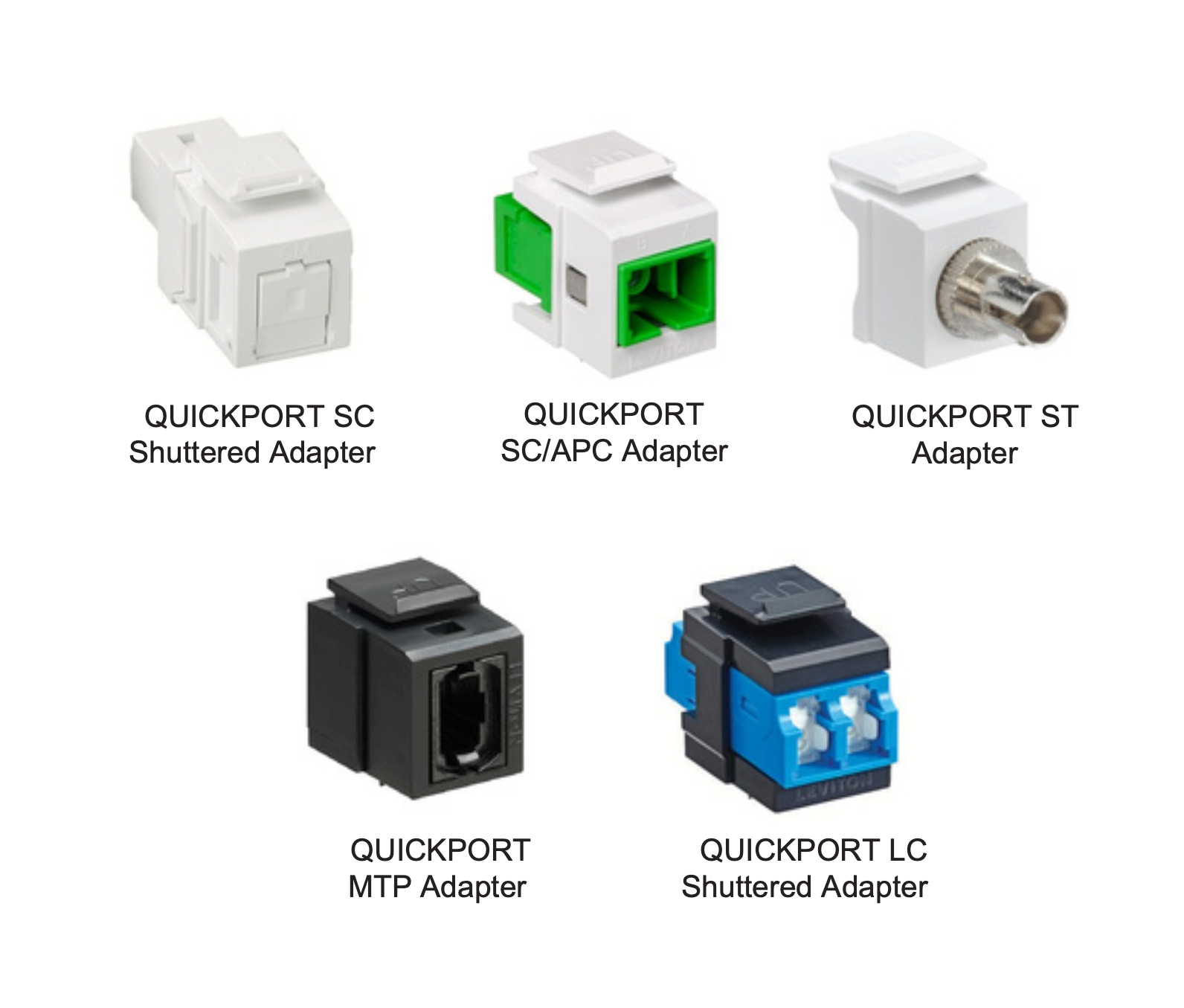

QuickPort fiber optic adapters are snap‑in bulkhead modules for workstation and patching applications; available in ST, SC, LC (shuttered) and MTP styles, compatible with single‑mode and multimode connectors, and offered with zirconia ceramic or phosphor bronze sleeves. Shuttered LC adapters are IP5x rated and illuminate with a VFL for traceability.

Product Specification

Form factor: QuickPort snap‑in bulkhead module
Connector styles: ST, SC, SC/APC, Duplex LC (shuttered), MTP®
Fiber types supported: Single‑mode (OS1/OS2, G.652/G.657), multimode (OM1/OM3/OM4/OM5), laser‑optimized multimode (LOMM) for LC 10G
Sleeve materials: Zirconia ceramic (SM/LOMM/selected MM) ; phosphor bronze (MM)
Shutter: LC shuttered IP5x, VFL illumination capable
Mounting: Snap‑in into any QuickPort housing (flush/surface/multimedia/patch panels)
Countries of origin: Taiwan, USA (see part)
Standards: ANSI/TIA‑568.3‑D; ANSI/TIA‑604 family; IEC 60529 IP5x

Part Numbers (representative)

41086‑ML — QuickPort Duplex LC shuttered, MM, zirconia ceramic sleeve, beige
41086‑LL — QuickPort Duplex LC shuttered, 10G LOMM, zirconia ceramic sleeve, aqua
41086‑SL — QuickPort Duplex LC shuttered, SM, zirconia ceramic sleeve, blue
41085‑MC — QuickPort Simplex SC shuttered, MM, phosphor bronze sleeve, female front/back
41085‑Sx — QuickPort Simplex SC shuttered, SM, zirconia ceramic sleeve, female front/back
41085‑AS — QuickPort Simplex SC/APC, SM, zirconia ceramic sleeve, female front/back
41084‑SxF — QuickPort ST, MM, phosphor bronze sleeve
41084‑SxZ — QuickPort ST, SM, zirconia ceramic sleeve
41085‑TP+ — QuickPort MTP®, SM/MM, key up to key down (opposed)
41085‑TB+ — QuickPort MTP, MM, key up to key up (aligned)

\* Color suffixes: Ivory (I), White (W), Gray (G), Black (E), Yellow (Y), Red (R), Blue (L), Green (V), Orange (O). Minimum order quantities and lead times may apply.

Product Specification

Product Specification (Feature and Benefit)

Features

Snap‑in QuickPort module bodies rated UL 94V‑0.
Available connector types: ST, SC, SC/APC, duplex LC (shuttered), MTP® (keyed up/down).
Zirconia ceramic sleeves for single‑mode and high‑performance multimode; phosphor bronze sleeves for multimode options.
LC shuttered option with internal patented shutters, IP5x dust rating and VFL illumination.
Multiple color choices for fiber type identification and decor matching.
Compatible with QuickPort outlets, multimedia modules, patch panels and patch blocks.

Benefits

Fast, tool‑less installation into standard QuickPort housings for consistent, repeatable deployments.
Zirconia sleeves ensure low insertion loss and long‑term optical performance for 1 Gbps and higher links.
Shuttered LC increases safety, reduces contamination and removes need for dust plugs.
VFL illumination support speeds fiber tracing and troubleshooting.
Color options simplify fiber type identification and aesthetic integration.
Broad compatibility supports mixed deployments (SM, MM, LOMM, MTP) across racks, outlets and panels.
